This bogie can be made from 35mm to 95mm centers and is available in 32mm,  G scale and 7/8ths scale. The wheel sets are insulated and 24/28/33mm in diameter according to scale.



The main bogie body etched .7mm brass and has a full set of Brass bearings. The motor is our dependable and powerful RS385 unit that can run up to 15 volts!

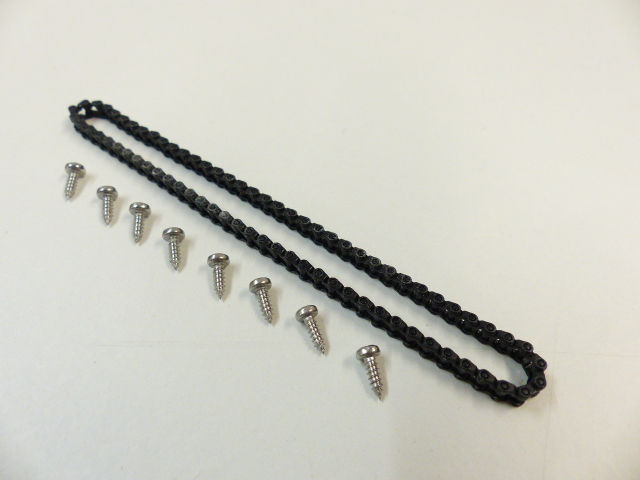

These power bogies come as an almost ready to run unit using a 25:1 gearbox. The only job left to do is cut it down to your desired wheelbase and fix the two halves together. Each half is marked at 5mm intervals with a half etch line to help the reduction process. The bogie also comes with a full length of chain and 8 screws.



PLEASE CLICK ON THE INSTRUCTIONS PAGE (WITHIN THE NAVIGATION BUTTONS OF THE SITE) FOR THE RAILBUS INSTRUCTIONS DOWNLOAD.

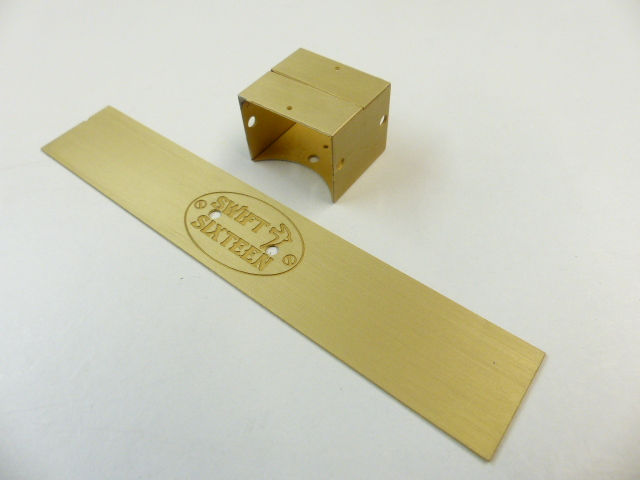

Made from a very solid .7mm brass chassis, and has a removable base to keep garden muck out ! Fitted with a powerful RS385 5 pole motor, custom over sized brass bearings, Delrin chain-gears and Brass-steel gears.

If you are going to run this power bogie with an electronic speed controller, you should use a motor suppression kit to cut down RF noise. Kit available below.

These power bogies are “ready-to-run” in as much as they are not in kit form. They can have power fed to the motor in whatever way suits your railway. If you run track fed models, you will need to add your own wheel pickups.

Kit Contents:
X1     Chassis
X1     Wheel set
X4     Bearings
X1     Motor
X1     Delrin set
X1     Motor gear
X1     Axle gear

Technical Information:
Wheel size 24mm for SM32, Slaters Disc Wheel.

Wheel size 28mm for G scale, Slaters 6 Spoke Wheel.

Wheel size 33mm for 7/8ths or G, Slaters 6 Spoke wheel.
Wheel Base  35mm to 95mm centers

Gearbox          25:1

Adjustable Length Power Bogie

£95.00Price
