'Swift Sixteen' offers high quality products in resin, brass and other mediums, for the 16mm garden railway modeller/enthusiast. We hope that you will enjoy browsing our website, and we will keep it updated regularly as new products are released.

We now offer our power bogies in 13:1 and 25:1 gear ratios,

13:1 Faster running for better main line speed,

25:1 Slower main line running, with theoretically more pulling power.



PLEASE NOTE.

The power bogie chassis has 13:1 AND 25:1 etched into each end where the motor plate is. The motor plate covers up the gear ratio you have ordered. So if you see 13:1, you are getting 25:1 and if you see 25:1, you have the 13:1 because the motor plate is covering the end that relates to the ratio.


Tin Turtle is a nickname given to the larger (40hp) Motor Rail locomotives produced for the War Department Light Railways of the First World War. The name was coined due to the appearance of the locomotives which carried weighty armor plating to protect their crews during use near the front line.

Swift Sixteen are very proud to be able to bring you this true, 16mm scale WW1 Tin Turtle kit. No short cuts have been made, so we can offer you the best model money can buy in its class.

Our Tin Turtle kit has been made from only the very best materials, so that we are able to reproduce this historical locomotive in stunning detail. What is more, time was taken to travel to the real locomotive at the Apedale Valley Light Railway to see this engine. A good few hours were spent photographing and measuring the fully restored prototype, so that we could produce the finest model possible.

We would like to thank all the guys at Apedale for their help and time.

The main body casting is made from our now famous pure resin, so you are off to a flying start with a huge detail level and accuracy. The main body and chassis castings are at least 5mm thick, so this model will stand the test of time.

All the fragile and vulnerable parts are made from cast brass, these being roof supports, buffer heads and handles. Other body parts are made from .7mm brass etchings, with either etched in detail, or pre-marked rivets for pressing with a rivet press. Our kit is also supplied  with the roof pre-rolled.

If number plates and builders plates are your thing, we have even covered that. In the kit as standard are a full set of fully scale and beautifully etched plates in .3mm nickel silver.

If the above was not enough, our kit comes with RTR brass power bogie, fitted with powerful 6-15 volt RS385 5 pole motor, brass and steel gears, over sized brass bearings, Delrin chain drive and stainless steel wheels! For those that run 45mm, our wheel sets come with proper LGB flanges!

We have geared this model in such a way, that it has an usable top speed, something that is sometimes missed in electric models in this scale. As stated above, we have also fitted a 6-15 volt motor, so gone are the days of two AAA's developing barely enough power to move itself !!

The model has been designed to leave the body cavity as empty as we can, this means that there is plenty of room for batteries and R/C gear, if that is what you want to fit. There is even scope to scratch build some internal detail, if you want to.

A note about the power bogie.

These power bogies are “ready-to-run” in as much as they are not in kit form. They can have power fed to the motor in whatever way suits your railway. If you run track fed models, you will need to add your own wheel pickups.

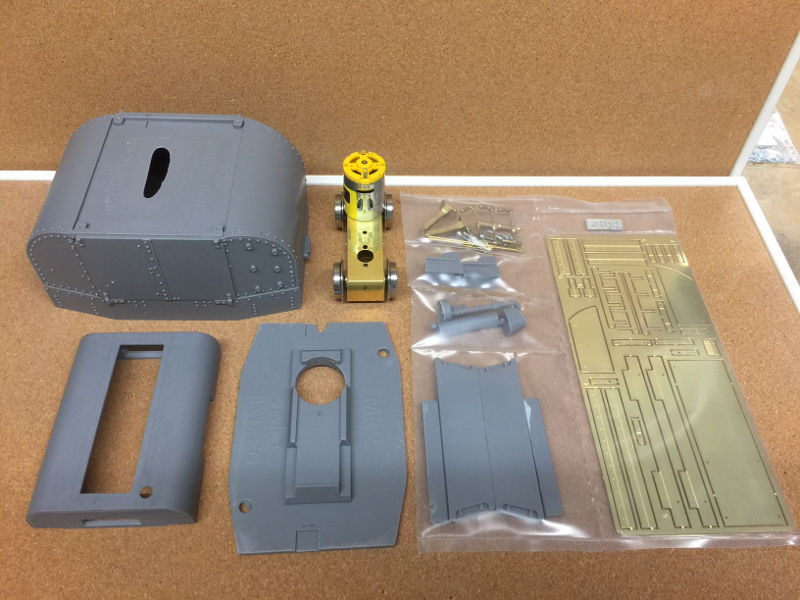

Kit Contents:
X1     Body
X1     Chassis
X2     Under plate
X2     Under plate rail
X2     Under plate post
X1     Exhaust pipe
X1     Exhaust silencer
X1     Pre rolled roof
X1     Etch brass pack
X2     Etch Number plate
X4     Brass roof panel.
X6     Brass handle
X2     Brass buffer
X1     RTR brass power bogie
X1     Brass wire
X2     R clip
X3     Allen bolt
X30     Brass rivet

Technical Information:
Length over buffers     185mm
Width     108mm
Height     120mm
Weight     720 gram





PLEASE CLICK ON THE INSTRUCTIONS PAGE (WITHIN THE NAVIGATION BUTTONS OF THE SITE) FOR THE INSTRUCTIONS DOWNLOAD.

Fully Armoured Tin Turtle

£210.00Price
Gear Ratio
Options
